Multi-Jet Water Meters
The Multi-Jet Fan Wheel Water Meter is designed and built to meet Class "C" specifications and is technically the most advanced meter to date.
Accuracy at lower flow rates results in less water escaping measurement. This super-accurate water meter will stay within the legal specifications for meters in use for a considerably longer period than the previous range of water meters, thus enhancing a reputation which is already well established.
The
M100 Optima Multi-Jet Meter with Class "C" accuracy offers optimum cost benefit ratio.

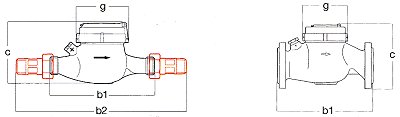

M100 Optima dimensions
| Meter Size (mm) |
15 |
20 |
25 |
32 |
40 |
50 |
| Length b1 |
165 |
165 |
260 |
260 |
300 |
270 |
| Length b2 |
251 |
266 |
373 |
373 |
438 |
|
| Width g |
100 |
100 |
105 |
100 |
135 |
170 |
| Height c |
115 |
115 |
130 |
130 |
150 |
205 |
| Mass (kg) |
1.5 |
1.6 |
2.2 |
2.5 |
3.7 |
10.0 |
For detailed M100 Optima Technical Information, such as Flow Rate, Features, Accuracy Curve and Pressure Drop Graph, please
Click here.
